Trident Marine 8" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps
$306.38
You Save: (%)
This product was viewed times within last hour
Availability: In stock

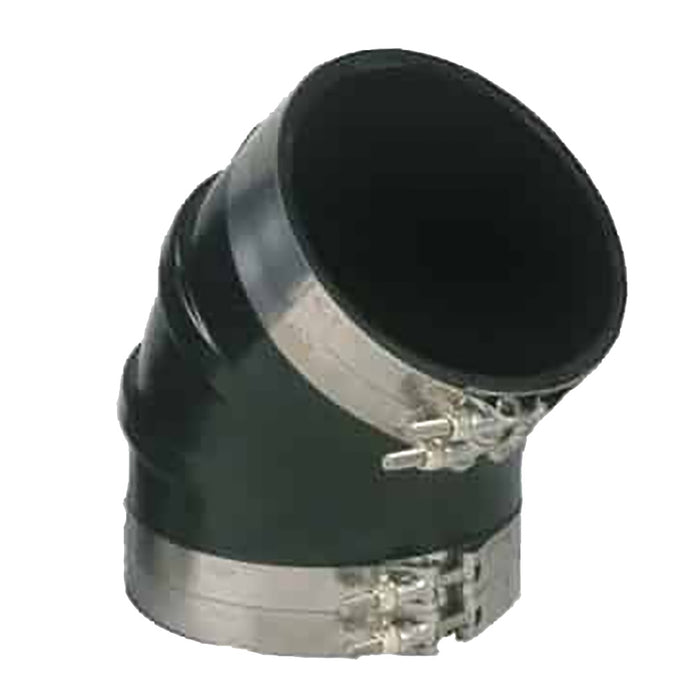

8" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps
Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.
Features:
- Four stainless steel clamps are included
- This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
- Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
- Black high-temp EDPM rubber
Construction:
- Color: Black
- Reinforcement: Reinforcing ribs on 6” I.D. and above
- Temperature Range: up to 250°F (121°C)
Specifications:
- Inner Diameter: (inch) 8” / (mm) 203
- Outer Diamter: (inch) 8.74" / (mm) 222.0

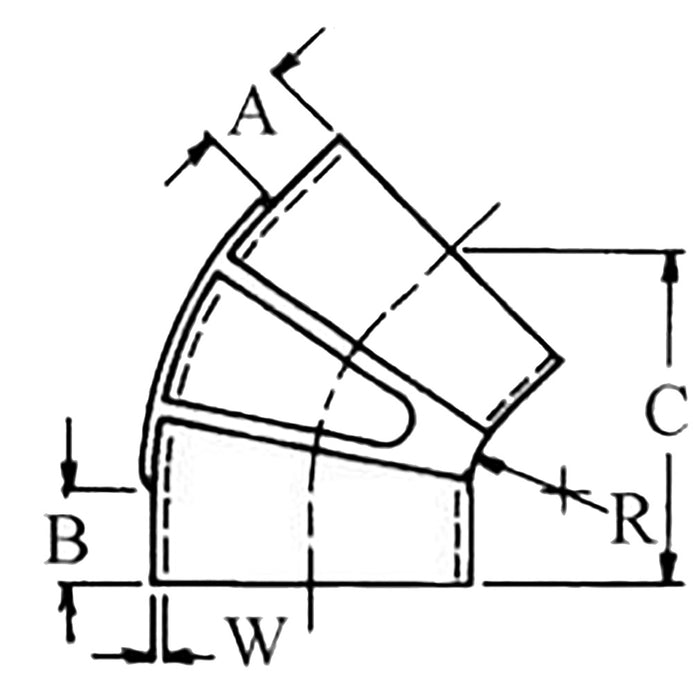

- A: (inch) 2.25” / (mm) 57.2
- B: (inch) 2.25” / (mm) 57.2
- C: (inch) 8.25” / (mm) 209.5
- W: (inch) 0.37” / (mm) 9.4
- Elbow Degree: 45 degrees
- Weight: (Lb/Ea) 4.3 / (Kg/Ea) 1.95
Manufacturer : Trident Marine
Manufacturer Part No : TRL-845-S/S
UPC : 704917001524
