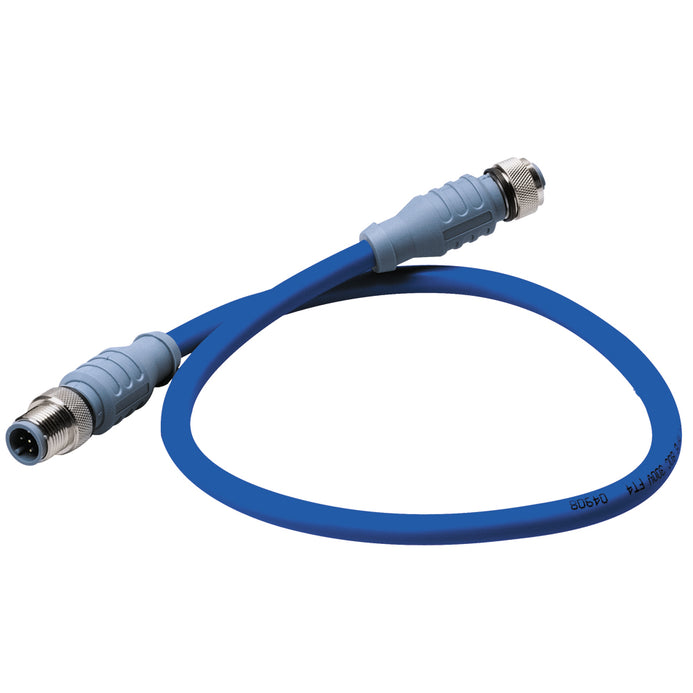

    Maretron Mid Double-Ended Cordset - 10 Meter - Blue

    Maretron Mid Double-Ended Cordset - 1 Meter - Gray Maretron Mid Double-Ended Cordset - 10 Meter - Blue Maretron Mid Double-Ended Cordset - 2 Meter - Blue
    Sold out
    Sale
    ¥544.49
    You Save: (%)
    This product was viewed times within last hour

    Availability: In stock

      Maretron Mid Double-Ended Cordset - 10 M Blue

      Mechanical:

    • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
    • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
    • Contact Mat/Plating: Brass/Gold
    • Coupling Nut Mat/Plating: Brass/Nickel
    • Connector Outside Diameter: 0.59"

      Electrical
    • Current Rating: 4.0 Amps
    • Voltage Rating: 250 V

      Cable

    • Outer Jacket Mat/Color: PVC/Gray
    • Conductor Insulation Material: PE (data pair), PVC (power pair)
    • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
    • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

      ENVIRONMENTAL
    • Protection Class: IEC IP68, NEMA 1,3,4,6P
    • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

      APPROVALS
    • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
    • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
    • NMEA: NMEA 2000 Approved
    • IEC: IEC 61162-3

      Specifications:

      • Cable Length (Feet): 33'
      • Box Dimensions: 2"H x 8"W x 8"L WT: 2.3 lbs
      • UPC: 873804001999
